LNB Monoblock Quad

  • 849 kr

Produktbeskrivning:Inverto Quad Monoblock 23mm - 6 grader- Inverto Monoblock 6 grader - 4x UtgångarInverto Quad Monoblock 23/40mm hals LNB,  för 4 st Motta

I lager
Lagersaldo: 4
Artikelnummer: 915inv
Leverantör: dnordic
Dela

Produktbeskrivning:

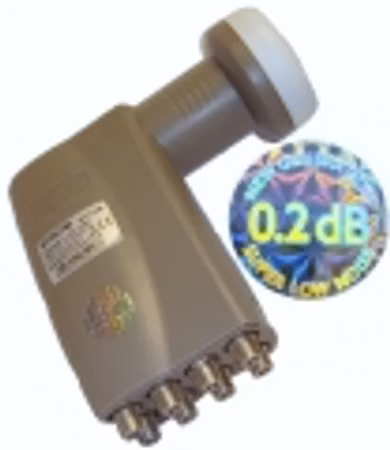

Inverto Quad Monoblock 23mm - 6 grader

- Inverto Monoblock 6 grader - 4x Utgångar

Inverto Quad Monoblock 23/40mm hals LNB,  för 4 st Mottagare och mottagning av 2st Satelliter 6grader emellan ,som till exempel Thor & Sirius eller Astra & Hotbird.

Low Band Input Frequency Range10.7 ~ 11.7 GHz
Low Band Output Frequency Range950 ~ 1950 MHz
Low Band LO Frequency9.75 GHz
High Band Input Frequency Range11.7 ~ 12.75 GHz
High Band Output Frequency Range1100 ~ 2150 MHz
High Band LO Frequency10.6 GHz
Noise Figure0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy+/- 1.0 MHz Max.
LO Temperature Drift+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)- 90 dBc / Hz Max.
Conversion Gain50 ~ 65 dB
Gain Ripple (Over 26 MHz Bandwidth)+/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection40 dB Min.
1 dB Compression Point (@ Output)0.0 dBm Min.
Control: Satellite A/B SelectionDiSEqC 1.0 (Sat A* = Hotbird 13° East,  Sat B = ASTRA 19.2° East)
Cross Polarization Isolation22 dB Min.
Output VSWR2.5 : 1
In-Band Spurious- 60 dBm Max.
Current Consumption250 mA Max. @ 11 ~ 20 V
Operating Temperature- 30 °C  ~  + 60 °C
Output Impedance75 ?
Output ConnectorF-Type (Female)
Weight485 g
Recommended Dish Size75 ~ 85 cm (F/D = 0.6)
Monoblock Mounting Bracket23 mm
